Scholar Signs Online
47" × 141" - 2-Sided Pro Series 6mm Outdoor LED Sign
47" × 141" - 2-Sided Pro Series 6mm Outdoor LED Sign
Regular price
$24,000.00 USD
Regular price
Sale price
$24,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

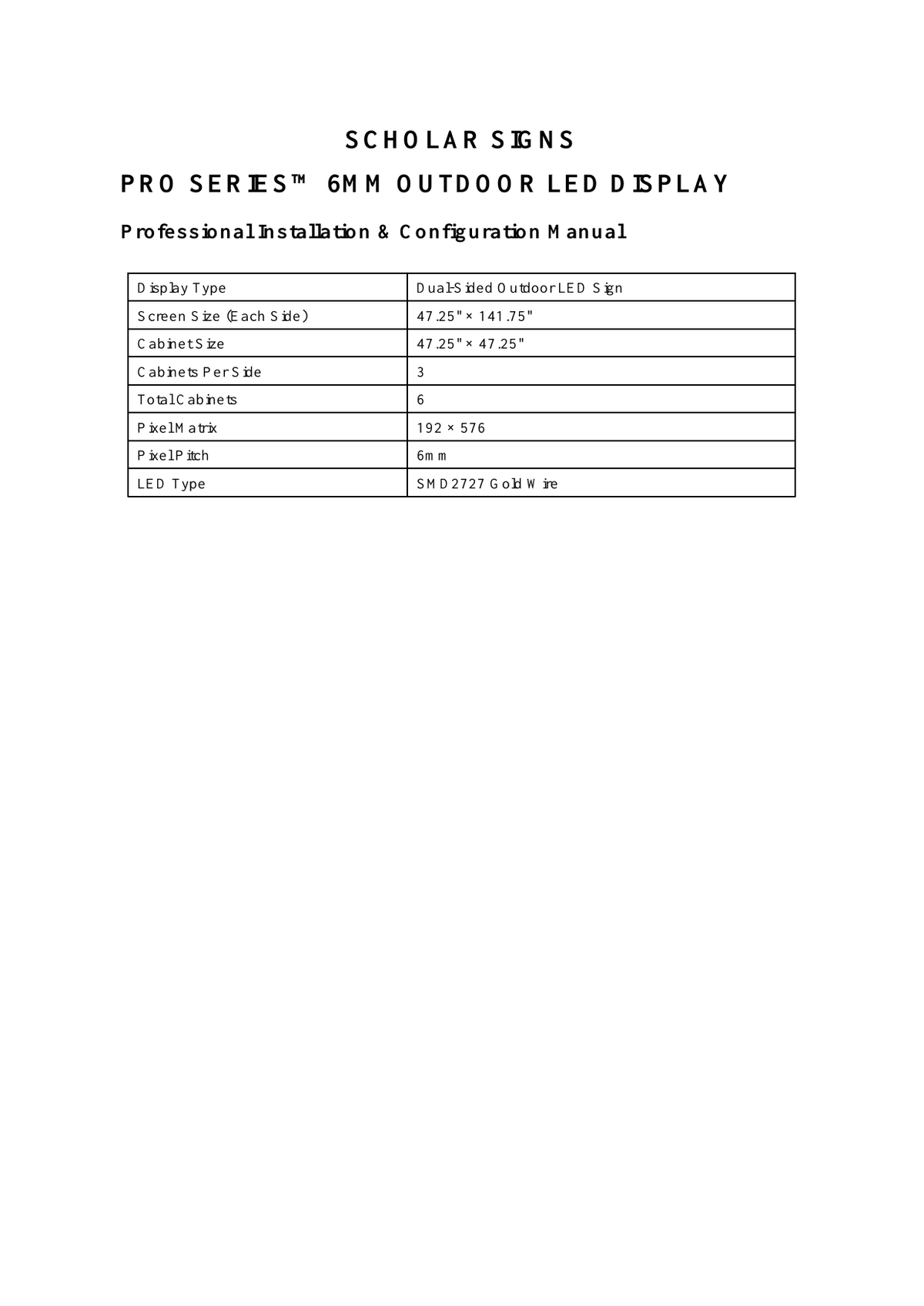

47" × 141" nominal double-sided Pro Series outdoor LED display built for high-brightness commercial messaging. Each face uses three cabinets in one row; the setup sheet shows an approximate face size of 47.25" × 141.75".
Display specifications
| Screen size | 47" × 141" nominal / 2-sided |
|---|---|
| Screen resolution | 192 × 576 pixels per display face |
| Module size | 11.75" × 11.75" |
| Module resolution | 48 × 48 pixels |
| Pixel pitch | 6mm |
| LED package | SMD2727 gold-wire |
| Drive mode | 1/6 scan |
| Brightness | 7,000 nits |
| Refresh rate | 3840 Hz |
| Grayscale | 16-bit |
| Ingress protection | IP65 front / IP54 rear |
| Service access | Front and rear |
| Maximum power | 650 W/m² |

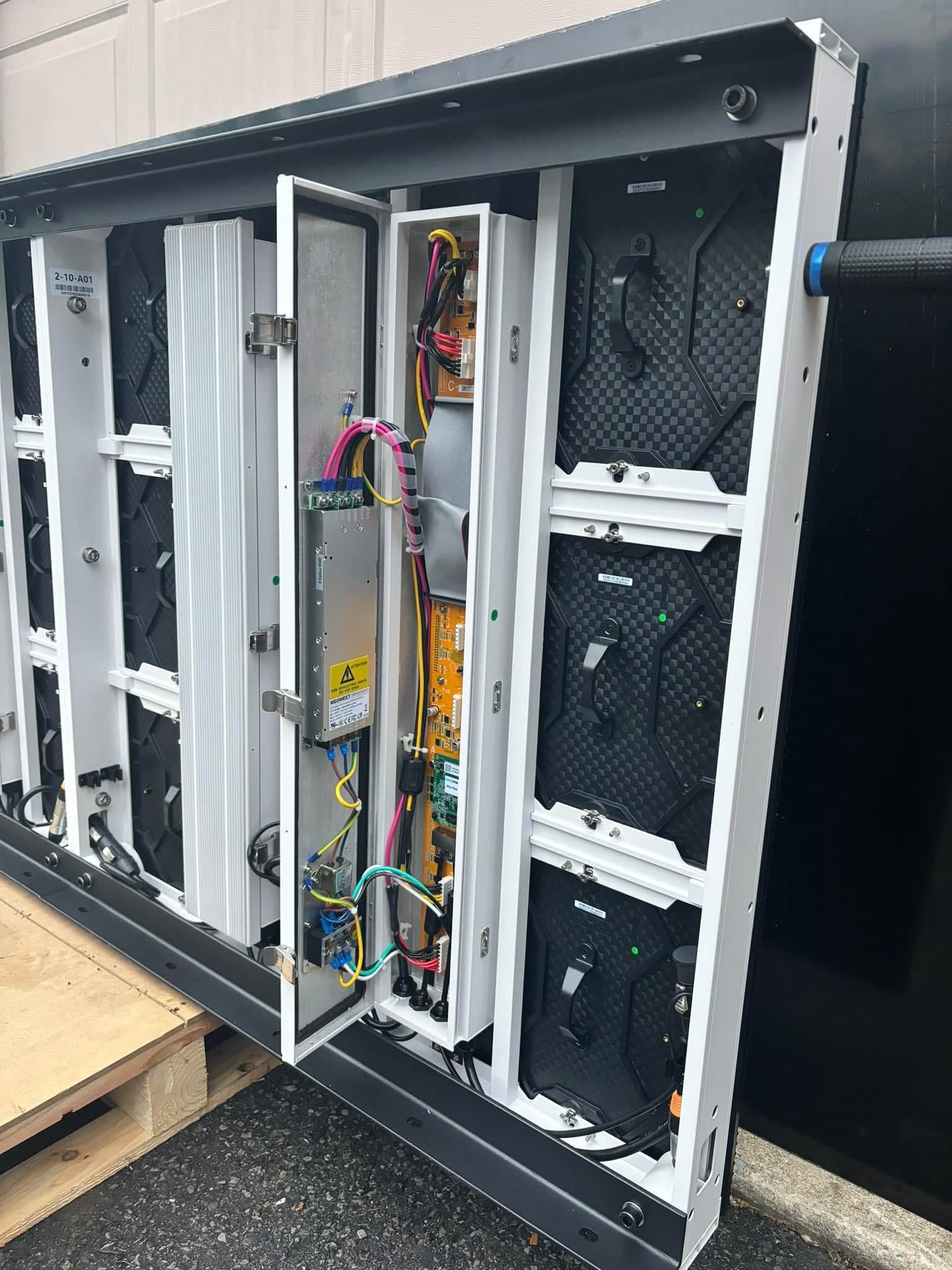

| Cabinet | All-aluminum |
Standard features
- NovaStar control system
- Wi‑Fi/4G connectivity and Ubiquiti antennas
- Mounting brackets and plug-and-play cabinet connections
- Automatic brightness control
- Playlist and content scheduling
- Free cloud-based software
- After-sale setup and support
Pricing and project scope: The current $24,000 Shopify price is retained because the matched specification sheet does not state a product price. Project scope should be confirmed in a written proposal.
