Scholar Signs Online
37.75" × 113.75" - 1-Sided Crossfire Series 6 Outdoor LED Sign
37.75" × 113.75" - 1-Sided Crossfire Series 6 Outdoor LED Sign
Regular price
$9,000.00 USD
Regular price
Sale price
$9,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
37.75" × 113.75" single-sided Crossfire Series 6 outdoor LED display. Its modular LST6 cabinet platform is engineered for bright, all-weather commercial messaging and front-or-rear service.

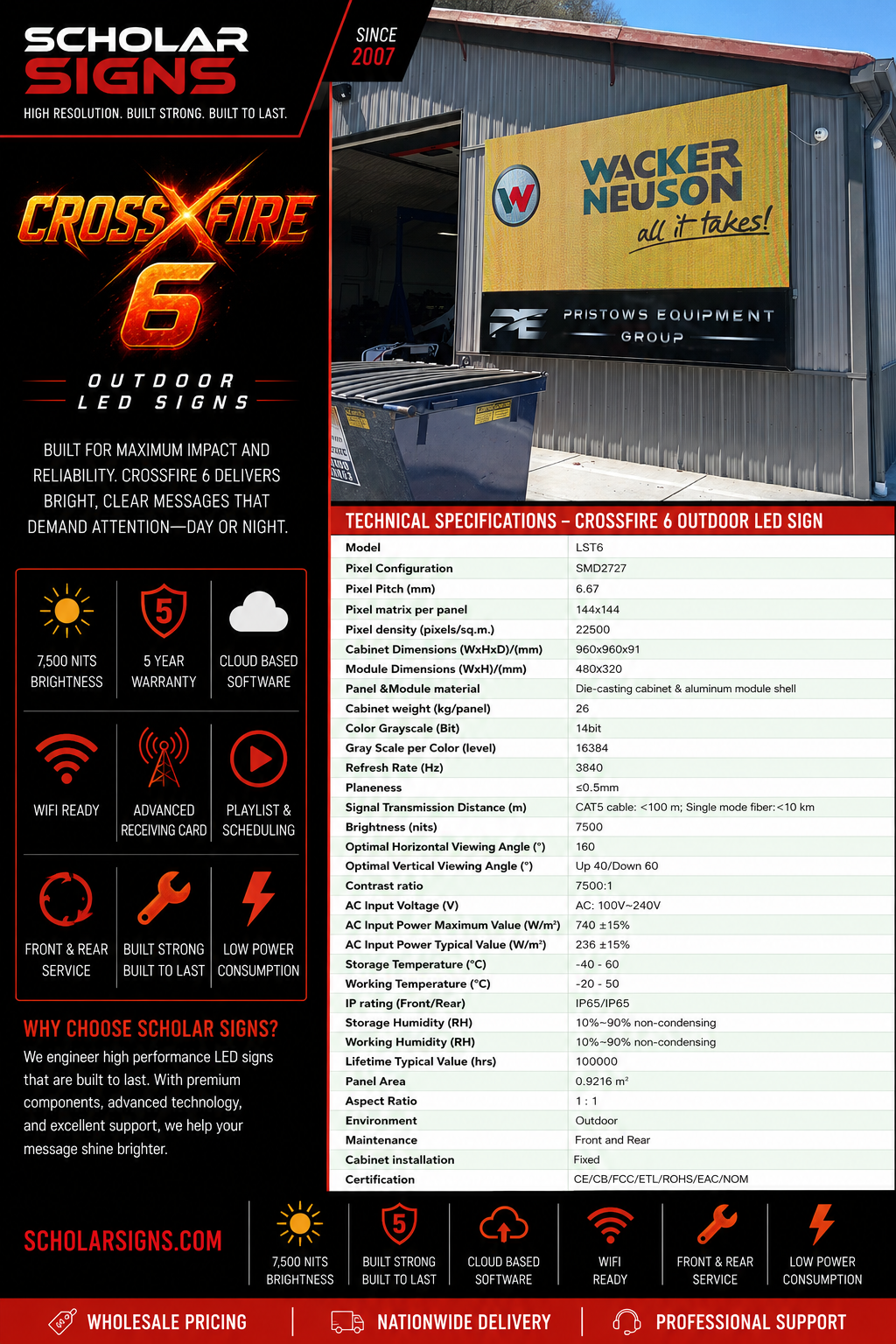

Display specifications
| Screen size | 37.75" × 113.75" / 1-sided |
|---|---|
| Screen resolution | 144 × 432 pixels per display face |
| Model | LST6 |
| Pixel pitch | 6.67mm |
| LED package | SMD2727 |
| Pixel matrix per cabinet | 144 × 144 |
| Pixel density | 22,500 pixels/m² |

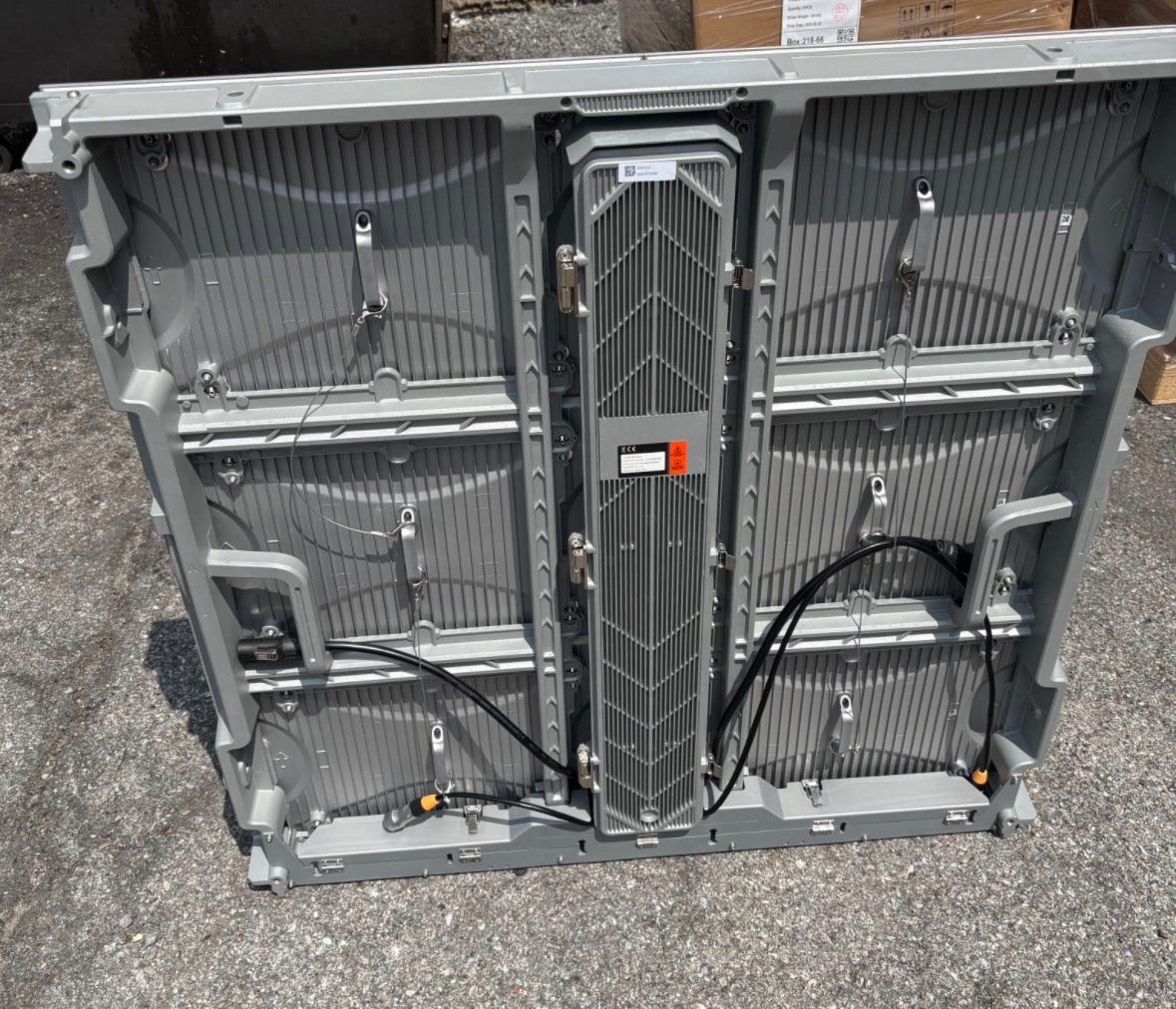

| Cabinet size | 960 × 960 × 91 mm |
| Module size | 480 × 320 mm |
| Brightness | 7,500 nits |
| Refresh rate | 3840 Hz |
| Grayscale | 14-bit / 16,384 levels |
| Ingress protection | IP65 front / IP65 rear |

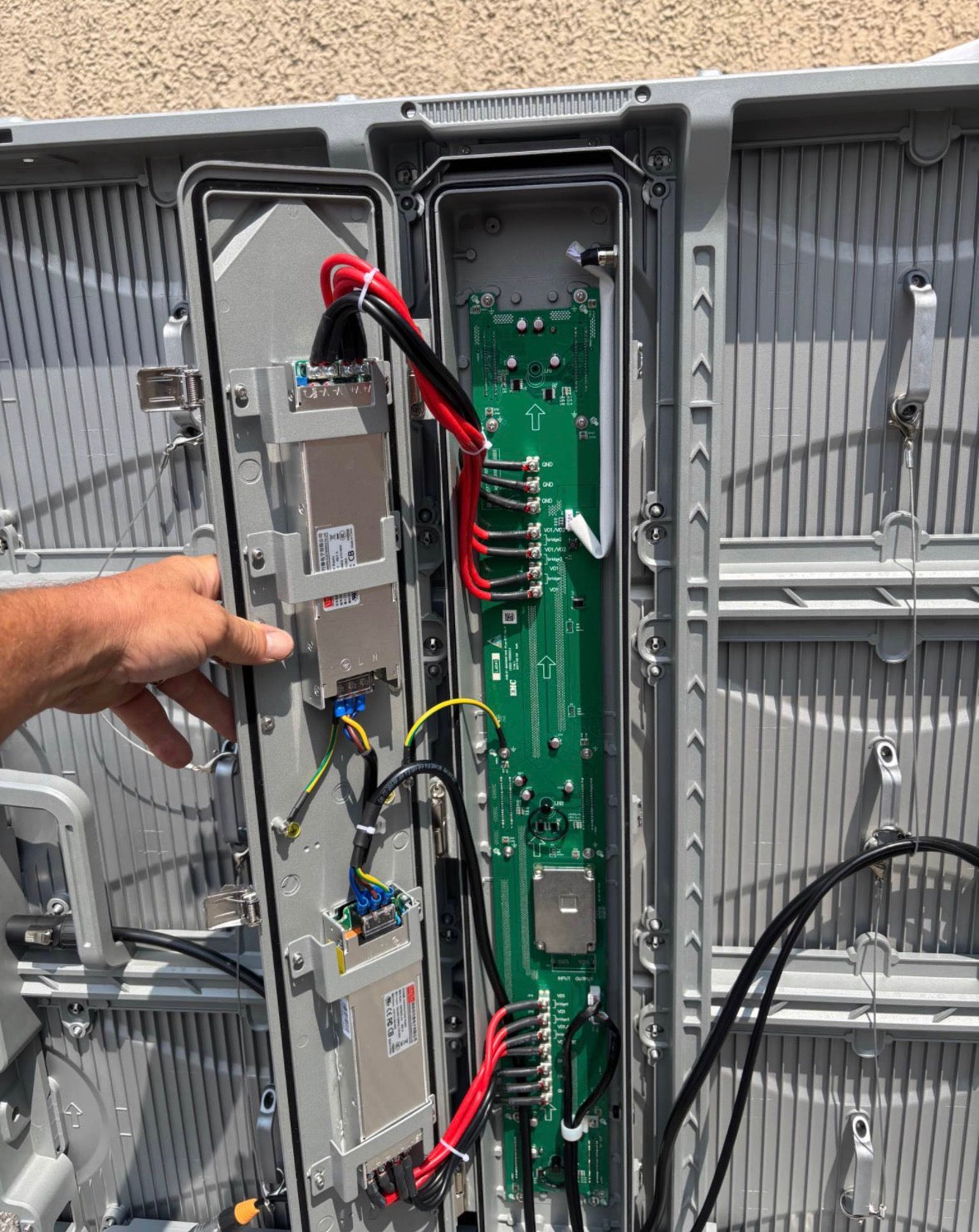

| Service access | Front and rear |
| Maximum power | 740 W/m² ±15% |
| Typical power | 236 W/m² ±15% |
| Rated lifetime | 100,000 hours |
Standard features
- Die-cast cabinet with aluminum module shell
- Wi‑Fi-ready control and advanced receiving card
- Playlist and content scheduling
- Free cloud-based software
- 5-year warranty; terms apply
- After-sale support
Pricing and project scope: The current Shopify price is retained because the matched Crossfire technical sheet does not provide a reliable size-specific price.
